MOODY DS54

LUXURIOUS COMFORT

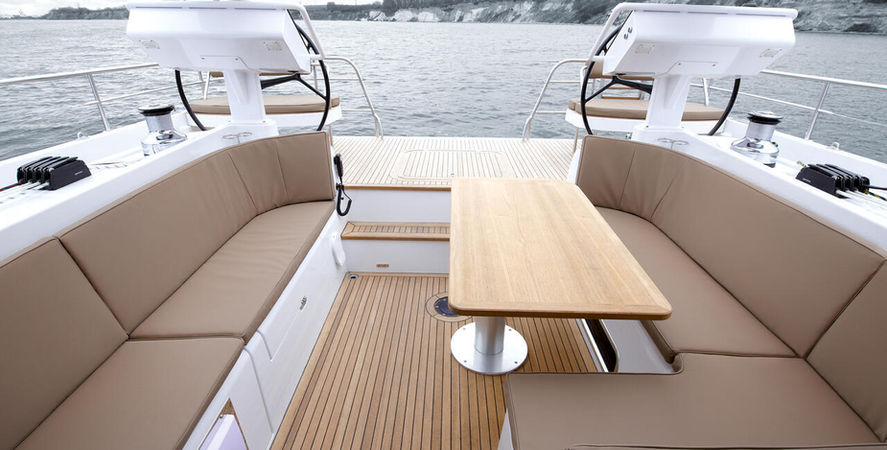

The Moody deck saloon ‘one level living’ concept takes a unique approach to modern yacht design. Simply open the sliding doors and you’ll enjoy a panoramic view from the living area and the spacious cockpit on the same level. The combination of the large cockpit with a cockpit table as standard and open afterdeck is ideal for spending time with family and friends.

EASY HANDLING

The helmseat is the spot where all threads come together. From the engine to the sails, any part can be controlled by a single helmsman. For long distance sailing it is highly desirable to operate the boat from inside, which can be easily done by the autopilot system in the saloon.

GALLERY

1/1

LAYOUT

VIDEO

SPECIFICATIONS

LOA: 17.10 m | 56′ 1″
LWL: 15.55 m | 49′ 8″
Beam: 5.20 m | 17′
Draft: 2.65 m | 8′ 5″ ( standard ) – 2.25 m | 7’4″ ( option )

Displacement: approx. 24.5 t | approx. 53.550 lb ( standard keel )
Ballast: approx. 7.0 t | approx. 15.300 lb


Engine: VolvoPenta D3-150 110 kW/ 150HP ( diesel engine )

Fresh water: approx. 810 l / 214 US gal
Fuel tank: approx. 520 l / 138 US gal
CE Certificate: A ( ocean )

Mast length above WL: 25.30 m | approx. 83′
Main: approx. 81.50 m2 | 878 sq ft
Jib: approx. 65.00 m2 | 700 sq ft
Genoa: approx. 79.00 m2 | 851 sq ft
Genaker: approx. 200.00 m2 | 2,154 sq ft
Total sail area: approx. 160.50 m2 | 1.730 sq ft

RIG
WL 24.05 m | 78′ 10.9″
I 21.40 m | 70′ 22″
J 6.40 m | 20′ 96″
P 20.70 m | 67′ 90″
E 7.10 m | 23′ 29′

DECK EQUIPMENT
Full perimeter bulwark complete with continues stainless steel handrail; Teak on side decks; Teak on seats and cockpit floor; 1 x standard electronic engine control at helm station stbd.; Self-draining anchor locker with electrical windlass on deck; 8 retractable mooring cleats; Fixed Anchor arm with double anchor roller, putting for second forestay; Mooring kit 40kg Delta anchor, 60 m chain 12 mm; Large cockpit table with teak folding leaf; Foredeck sail locker with ladder & large hatch; Hot & Cold shower on deck; Dedicated side deck locker for two large gas bottles, self-draining; Stainless steel swimming ladder; Self-tacking jib track integrated in the foredeck; Mainsheet twin system; Sheav e deck organizers (2 x 4); Deck jammers (2 x 4); Track on bulwarck for genoa sheet block; Hatches flush on deck and saloon; 2 electric Lewmar 65 CAST EVO winches in cockpit

Design: Dixon Yacht Design
External link: Moody DS54 official page

DS54

Colour Chart

DS54

Brochure
