NEW DEHLER 38SQ

DEHLER 38SQ SOLD - CLICK HERE

EX02_200703_PreBro_backbord_300dpi_4_zu_
EX05_200703_PreBro_ankern_300dpi_4_zu_3.

SPEED MEETS

QUALITY

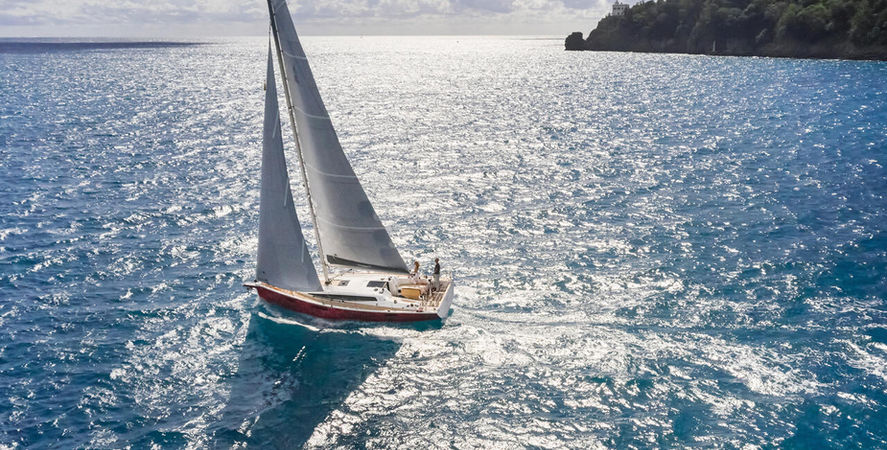

It is a very special yacht, that takes the tradition of the original performance cruiser into the future with all new innovations. A yacht, that adheres to this tradition with its name already: the Dehler 38SQ

INNOVATION & QUALITY

The new 38SQ offers the opportunity to extend both the comfort and performance aspects. Larger hull windows, forward cabin island berth design, higher trim levels and new finish options create a seriously inviting and high quality interior.



A new optional carbon competition rig design incorporates a square top mainsail for increased sail area and rig efficiency, a longer bow sprit and new sail options.


GALLERY

1/1

LAYOUT

EX06_200703_PreBro_Mood_300dpi_4_zu_3.jp

VIDEO

SPECIFICATIONS

LOA: 11,64 m
LWL: 10,40 m
Beam: 3,75 m
Draft: 2,03 m ( standard ) | 2,24 m ( competition ) | 1,60 m ( shallow )

Displacement: 7.500 kg ( standard ) | 7.000 kg ( compet. ) |6 kg ( shallow )


Ballast: 2.380 kg ( standard ) | 2.050 kg ( competition ) | 2.750 kg ( shallow )
Engine: Diesel 29 PS / hp


Fresh water: approx. 295 l
Fuel tank: approx. 160 l
CE Certificate: The Dehler 38SQ is built according to CE-Certification, Class A

Mast length above WL: 17,70 m ( standard ) | 17.80 m ( competition )
Total sail area: 78,60 m² ( standard ) | 83,60 m² ( competition  - alu) | 84,60 m²  (competition - carbon)
Main sail: 43,00 m² ( standard ) | 48,00 m² ( competition  - alu) | 49,00 m² (competition - carbon)
Jib : 35,60 m² ( standard ) | 35,60 m² ( competition - alu ) | 35,60 m² (competition - carbon)
Spinnaker: 118 m² ( standard )
Gennaker: 112 m² ( standard )
Rig I : 15,07 m ( standard )
J: 4,36 m
P: 14,50 m
E: 5,20 m

38SQ

Brochure

38SQ

Specs
